Four Spidnles Automatic Engraving Wooden Cylinder Router Machine LK1325
Furniture Industry: Bentwood processing, solid wood furniture, door and window processing, stair railings, etc.
3D Modeling: Musical instruments, coffins, teaching instruments, etc.
New Materials: Fiberglass milling and trimming, carbon fiber processing, resin parts, vacuum forming parts, etc.
Mold Industry: Casting, automotive, ceramics, sanitary ware, shipbuilding, yachting, aerospace, chemical, electrical, rail transportation, handicrafts.
1. Steel structure bed, concave table, saving space
2. One machine can be used for both purposes, and the plane can also be carved

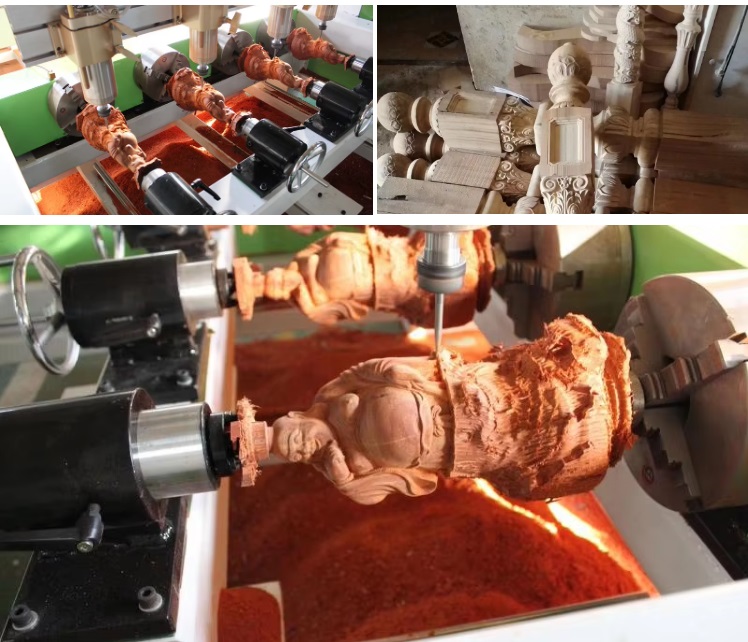

3. Four ends can be carved at the same time to improve efficiency
4. Fully automatic processing, easy to operate
Work area | 1300*2500*200 |
Travelling speed | 20m/min(MAX) |
Working speed | 12m/min(MAX) |
Working voltage | AC220V(Optional 380V) |
Spindle power | Water cooled 2.2KW*4-24000RPM |
Device architecture | One molding process,space saving cabinet (380V for the normal external cabinet)high structural stability ,high precision and small |
Driving system | XYZ: 86 high torque stepper drive motor and drive |
Rack and pinion | The new 1.2m alloy hardened helical gear rack + alloy hardened helical gear rack |
Guide Rails | Taiwan Original 20 guide rails +Taiwan TBI 2510 ball screw |
Operating system | Weihong |
Platform structure | Aluminum profile + fixture |
Cylinder Engraving Machine Application:
Board furniture, cabinets, wardrobes, office furniture, custom furniture.
Previous : CNC Furniture Carving Cutting Machinery LK1325 with Vac-sorb Table
Next : 5 Axis Woodworking CNC Router Machine Center
