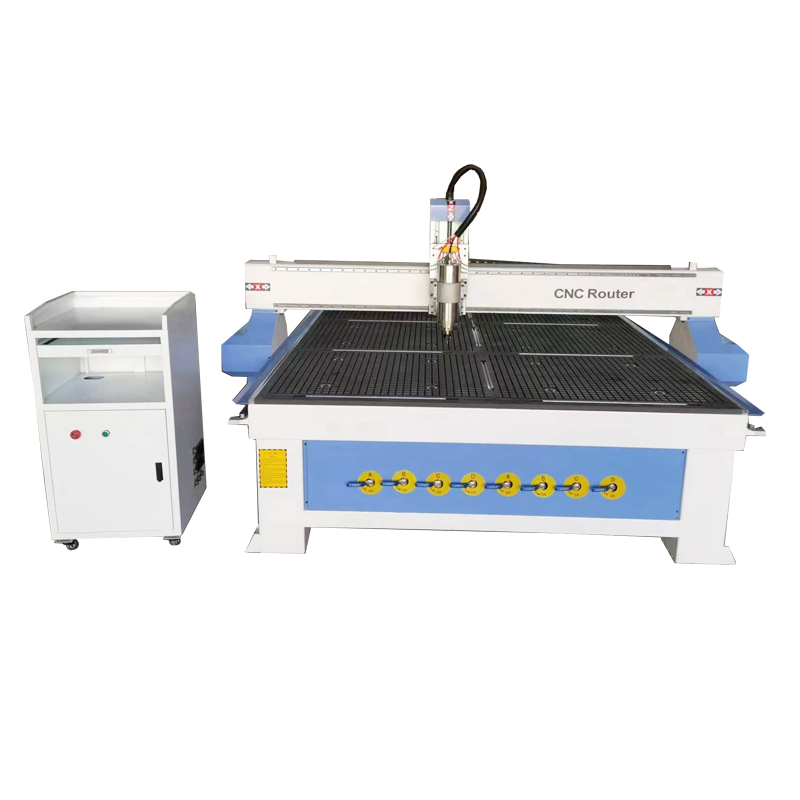

Adopts 8 mm steel Machine welding bed, after hundred times' special vibrate experiment, we ensure that the lathe will not deform during their long-term working hours. With enhanced welding technicals, we provide our machines good stability, longer life and amazing accuracy rate.

1.Adopts 8 mm steel Machine welding bed, after hundred times' special vibrate experiment, we ensure that the lathe will not deform during their long-term working hours. With enhanced welding technicals, we provide our machines good stability, longer life and amazing accuracy rate.

2. 3.2KW Water cooling spindle with good cooling effect. Almost no noise, long life.

3. Taiwan Hiwin square rails has more higher precision, less wear and tear can maintain high accuracy. it's apply to high-speed move and greatly reduce the drive horse power the machine required. What's more, can bear the load from left and right / up and down at the same time.

4. Leadshine stepper motor and driver, won't lose step when it work, guarantee the positional accuracy of the motor.

5.DSP control system don't need connect to PC. it is easily operate and learned, especially for the freshman.

6. Software: compatible with Type3/Artcam/Castmate / Ucancam a variety of CAD / CAM Design Software.

XYZ travel range	2000mm3000mm200mm
Spindle power	3.2 kW water-cooling
Spindle speed	0-24000 rpm
positioning accuracy	±0.03mm
Repeat positioning accuracy	±0.05mm
Traveling speed	0-25000mm/min
Engraving speed	1-12000mm/min
Guide rails	high-precision 20mm linear square rail
Transmission	High-precision ground helical gears on the X and Y axes, High-precision TBI lead-screw transmission on the Z axis
Drive and motor	860H drive and 450B motor
Tabletop	Vac-sorb with vacuum pump
Control system	Weihong/DSP control system
Control cabinet	independent
Design Software	Artcam,Type3,CAD,CDR,JDPaint,Ucancam
Carving Instructions	G Code/U00/mmg/plt/HPGL
Voltage	AC380V/50HZ

1. Woodworking industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.
