Our CNC Router is characterized by its fast processing speed and stable working condition. It can produce a wide range of products like wood/MDF/acrylic and so on.

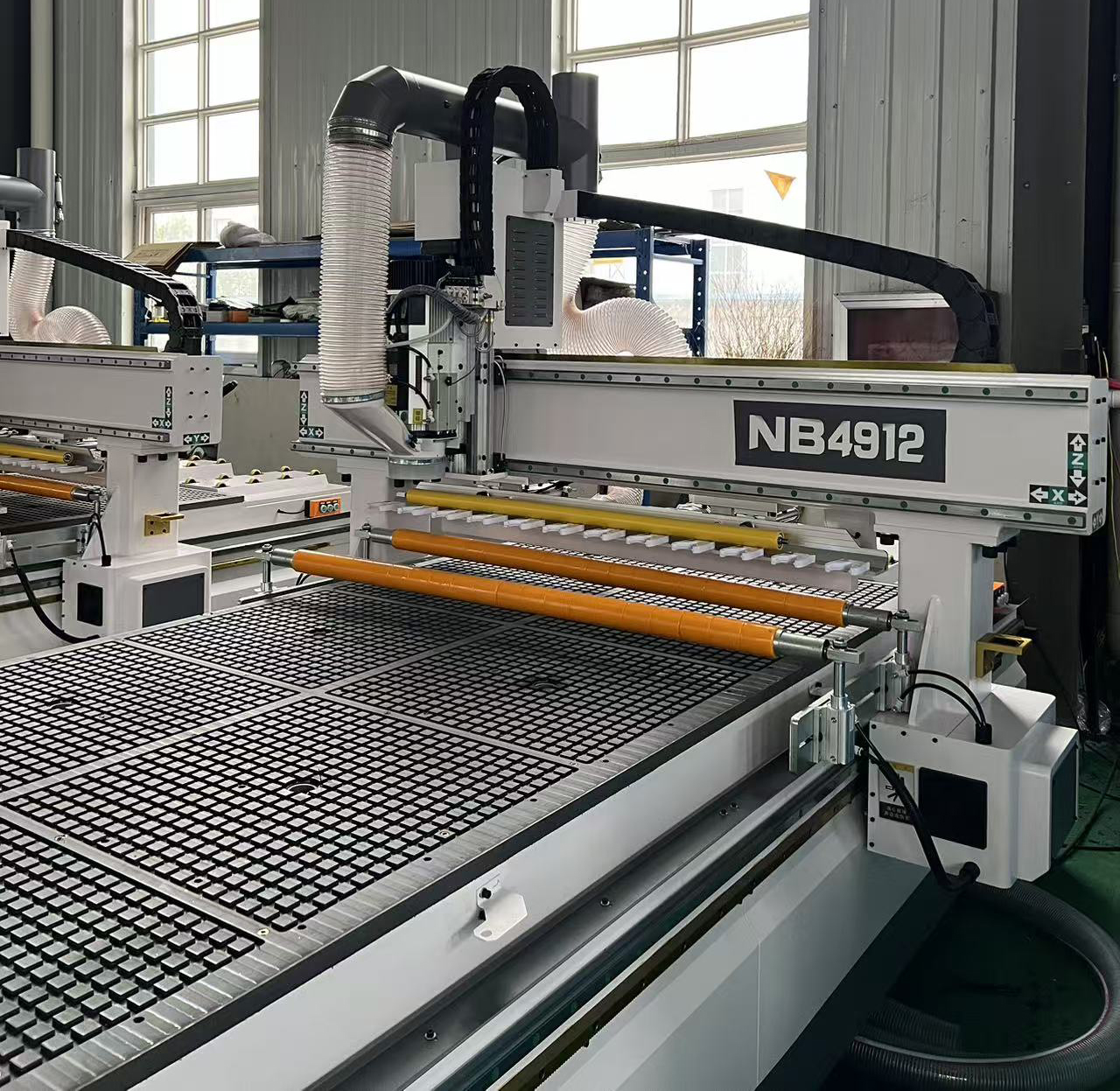

The NB4912 CNC Nesting Machine features a 9kw air-cooled spindle for efficient cutting, slotting, and milling of panel furniture. Its heavy-duty steel frame ensures stability and accuracy, while high-speed servo motors deliver rapid, precise operation. Equipped with a user-friendly Taiwan LNC controller, it supports multi-layer 3D jobs and fast tool changes within 5 seconds, enhancing productivity. The vacuum table allows easy switching between full-plate and smaller part processing, adapting to various material sizes.

model	NB4912
Working travel	1300mm2800mm200mm(Z axis)
Transmission type	X.Y Rack,Z ball screw
Working accuracy	±0.05mm
repositioning accuracy	±0.05mm
Max. Speed	60000mm/min
Max.working speed	25000mm/min
Spindle power	JST 9KW Air cooling,18000RPM/min
frequency inverter	11KW
Driver system	1.5KW Leadshine servo
Command code	C code
Control system	Taiwan LNC
Automatic tools system	12 tools, linear type ATC
Table structure	Vacuum suction( five area Independently)
Oiling system	Automatic
Tool setting system	Automatic
voltage	380V

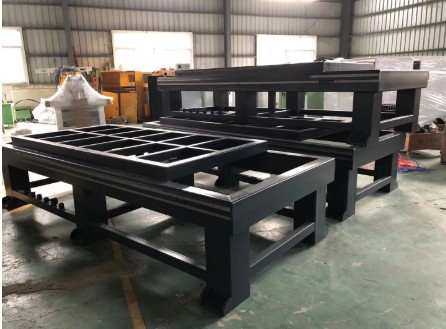

①The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

②With high -performance 1.5kw servo motor, the Machine can work in high precision.The servo motor runs smoothly.

③The High quality CNC Router machine comes standard with 9 kw high frequency spindle. This precision spindle requires no maintenance. Fully programmable speeds from 0 to 24000 RPM, more powerful and less noise.

④Vacuum worktable in European standard are used in this ATC router table CNC for carpentry, positioning cylinder can be added which make material positioning easily and fast

⑤Equipped with 10-12 knife straight line knife library, can quickly and freely change the tool. Replace tools within 5 seconds.

⑥The CNC router uses precision helical gear racks on the X and Y axis. The rack is installed upside down to help prevent dust and debris from accumulating on the drive system, thereby ensuring smooth movement and long-term reliability. The precision gearbox is directly connected to the stepper motor and pinion gear. This eliminates belt stretching errors and ensures high-speed processing while the system accurately positions the spindle.

⑦ independently controlled pressure rollers with fully automatic rising and falling.

Board funiture, cabinet wardrobe, office furniture, custom fumiture, wardrobe, cabinet body, computer desk, wooden audio, wooden kitchenware and other board furniture plane cutting,milling,Edge, hole carving and other auxiliary processing.
