1.Working Principle of Engraving Machine

The engraving cutter will carve and mill the materials by a high speed rotary spindle.

lDrawing and save as files by USB.

lThe control system converts the path code into G code.

lsignal transfer by the control system

lDriver and Inverter get the signal

lMotor receives driver signal

lSpindle receives inverter signal

lStart work

2.Application Industries of Engraving Machine

lWoodworking and Furniture Industry: Engraving machines can carve patterns and letters on wood materials such as solid wood door panels and cabinet panels.

lAdvertising and Signage Industry: They are used to process advertising products like acrylic letters and metal letter molds, and produce store signs and exhibition boards.

lDecoration and Building Materials Industry: They can engrave stone background walls and ceramic waistlines to create exquisite decorative patterns.

lCraft and Gift Industry: They can carve personalized patterns and text on materials including jade, bamboo chips and leather to make cultural and creative products and commemorative gifts.

lMetal Engraving：engraving machines support high-precision metal engraving for signs and molds.

3.Control System

lHandle Controller

1) Rich Auto DSP A11

2) Weihong NK105 G2/G3

Features: It can read information from USB.NO need the computer, flexible and convenient.  Xingduowei

lATC System

1) Taiwan LNC

2) SYNTECFeatures: You can read the routing details and processing time and other detailed information .

4.Transmission

lSQUARE RAIL 20/25/30 TAIWAN  HIWIN/TBI/LM/PMI China square rail

lRACK  XY axis 1.25M/1.5Mhelical gear Taiwan YYC, Taiwan YYC-tw

lSCREW  Z axis

lTwo types of transmmison

1) XY axis by rack, Z-axis by screw drive

2) XYZ all by screw drive

5.Spindle

lIt is divided into water-cooled spindle (WATER COOLING) and air-cooled spindle (AIR COOLING).

lPower of water-cooled spindle:1.5KW/2.2KW/3KW/3.2KW/4.5KW/5.5KW/7.5KWRotation speed: 24,000 rpm

lPower of air-cooled spindle: 3.5KW/4.5KW/6KW/9KWRotation speed: 18,000 rpm

6.Frame

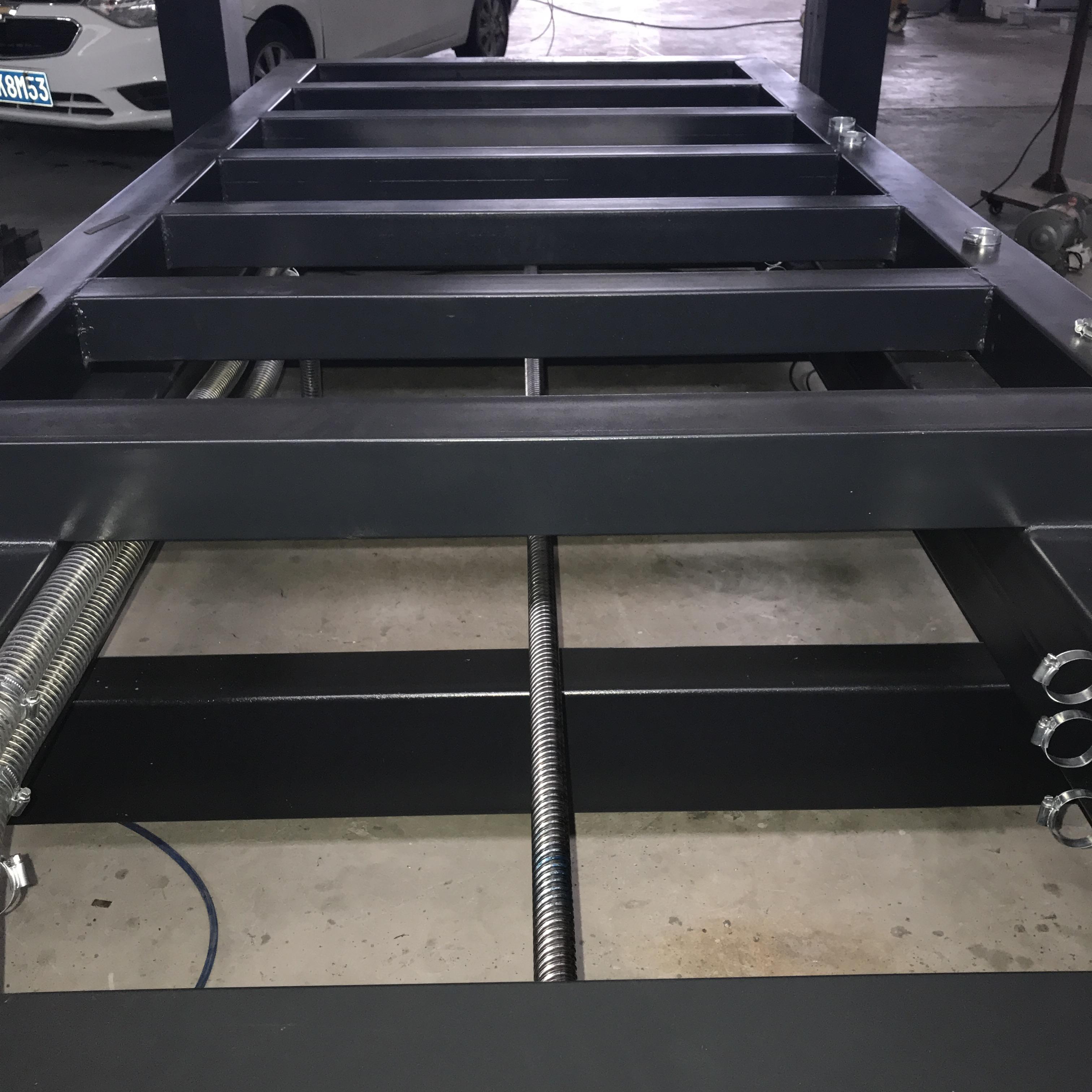

lWelding steel tube frame

lCast iron steel frame
